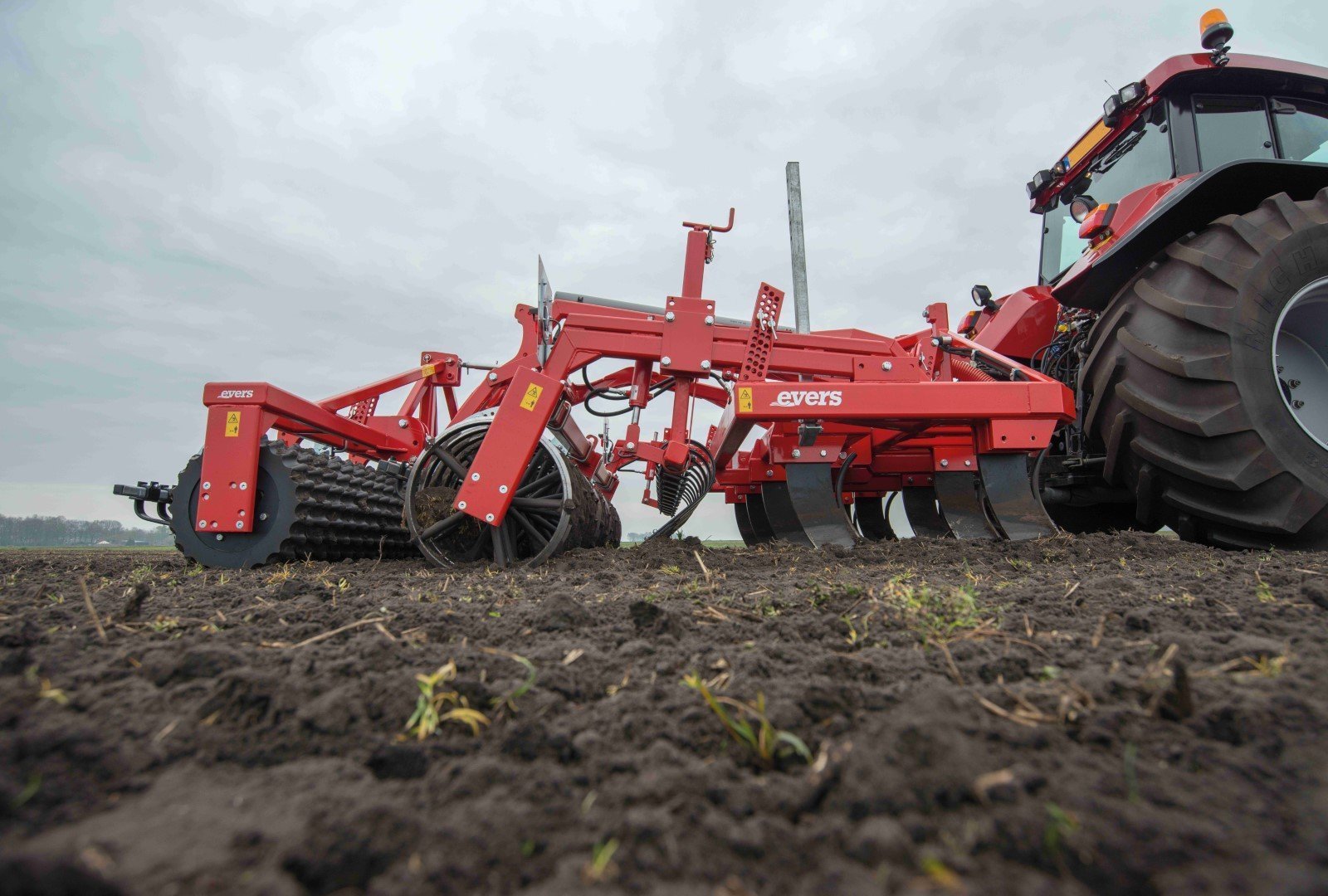

Multi purpose cultivator

The multi purpose cultivator is multifunctional. This cultivator offers a solution in many circumstances, both in light and heavy soil, and in difficult areas for cultivation. The machine has large, fixed tines with free passage to remove any bothersome soil layers.

Multifunctional use

The Evers multi purpose cultivator is a versatile fixed-tine cultivator that can be used for several operations. It is possible to raise the rear row of tines by means of a hydraulic cylinder. This allows for the cultivation at depth of parts of the field that are hard to work on, such as headlands. The unique "elevator" version allows to raise the rear row of tines straight up. That allows for working at different depths at once.

Tines and chisels for any type of soil

With its different types of cultivator tines, the multi purpose cultivator is suitable for all soil types:

  • ST tine: suitable for sandy and reclaimed peat soils (mixing effect)
  • K tine: suitable for clay and loamy soils, also usable in lighter soils
  • KG tine: suitable for heavy clay soils
  • MT tine: suitable for breaking up compacted layers without mixing the soil

    Even cultivation with less pulling power

    The multi purpose cultivator is available with two or three rows of tines; the latter design offers an even greater passage. This allows for more even cultivation, particularly in heavy soil, while less pulling power is needed.

    Improving soil quality

    It is possible to adjust the working depth of the tillage machine very precisely by means of the rear roller. As well as consolidating, levelling and crumbling the soil, rear rollers stimulate water absorption and help to improve the oxygen level in the soil. This prevents soil erosion and soil quality.

    Available in various standard versions:

    Multi purpose cultivator

    Size in cm

    TypeNo. of tinesWorking widthNo. of rowsTine spacingLine spacing dividedFrame heightHPCat.Hydr. folding frameTransport width (incl. rear roller)Kg (incl. rear roller)
    Forest 9-2819281231,25 62,50 7575-1303LNo3001185
    Forest 9-3109310234,4068,50 75 80-1403LNo3251240
    Forest 9-3389338237,50 75 75 85-1503LNo3501295
    Forest 11-30311303227,50 55 75 90-1603LNo3251370
    Forest 15-51015510234,25 68,50 75 180-3203LYes3063310
    Forest XL 9-281-29281231,2562,5075110-2003LNo3251610
    Forest XL 9-310-29310234,4068,5075120-2103LNo3501665
    Forest XL 9-338-29338237,507575120-2303LNo3501725
    Forest XL 9-338-39338337,507575150-2303LNo3501825

    Multi purpose cultivator - Straight tines - Shear bolt protection

    Size in cm

    TypeNo. of tinesWorking widthTine spacingFrame heightHPCat.Hydr. folding frameTransport width (incl. rear roller)Kg (incl. rear roller)
    Forest XL NK9-281-2928131,2575130-2403LNo3001610
    Forest XL NK9-338-2933837,575140-2703LNo3501725

    Multi pupose cultivator - Straight tines - Hydraulic obstacle protection

    Size in cm

    TypeNo. of tinesWorking widthTine spacingFrame heightHPCat.Hydr. folding frameTransport width (incl. rear roller)Kg (incl. rear roller)
    Forest XL HS NK 9-280-2928031,2575100-1403No3001655
    Forest XL HS NK 9-305-2930534,2575110-1703No3251705

    Options:

    • standard or "elevator" version
    • XL frame, for tractors with more than 140 hp
    • hydraulic obstacle protection system
    • reflector panels with lighting
    • various types of rear rollers
