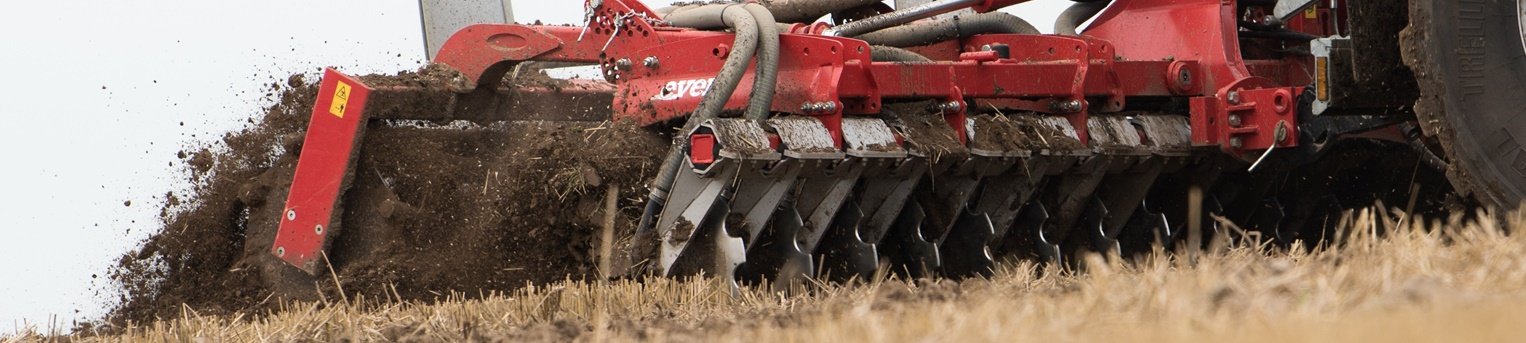

Disc cultivator injector

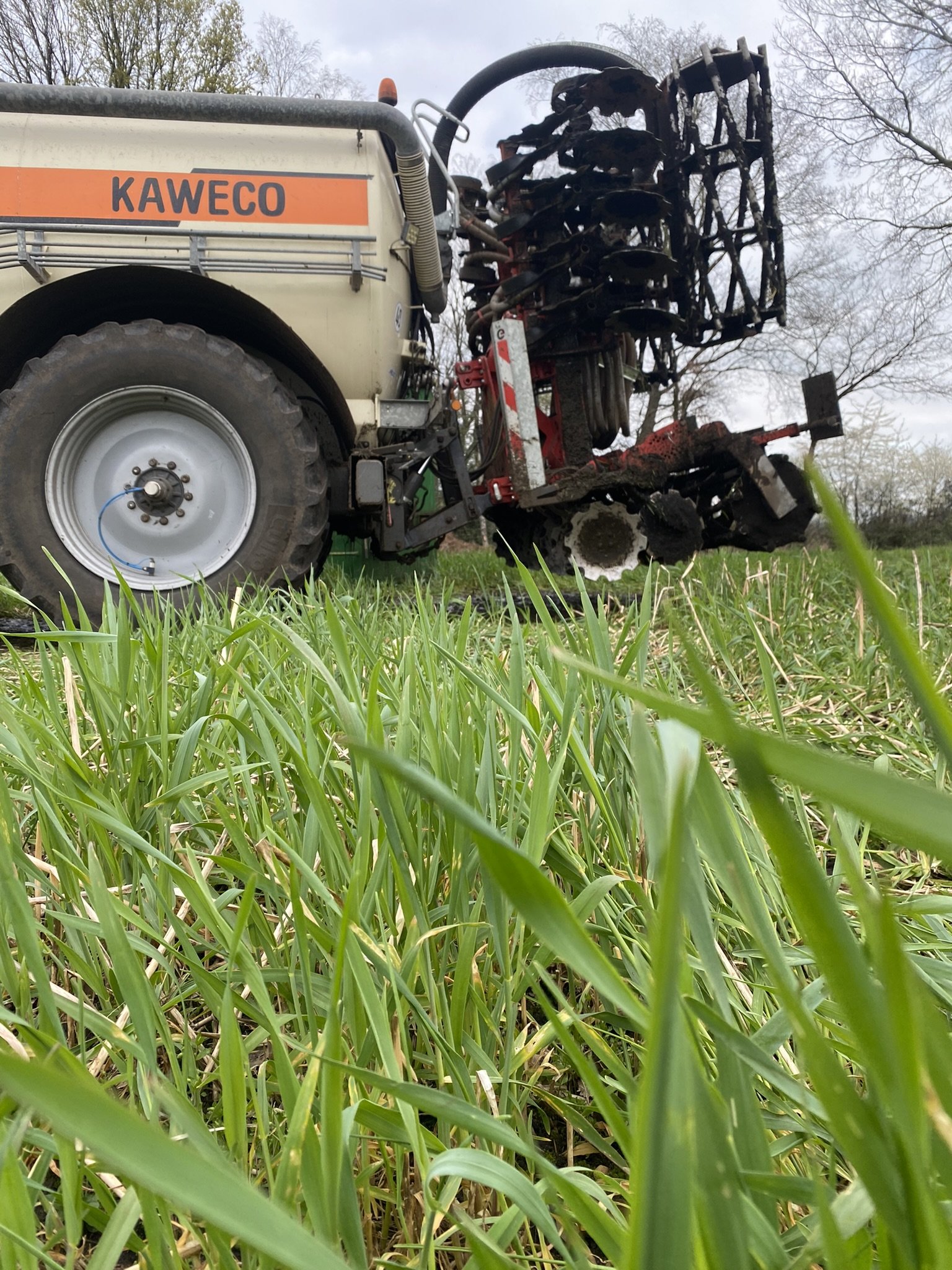

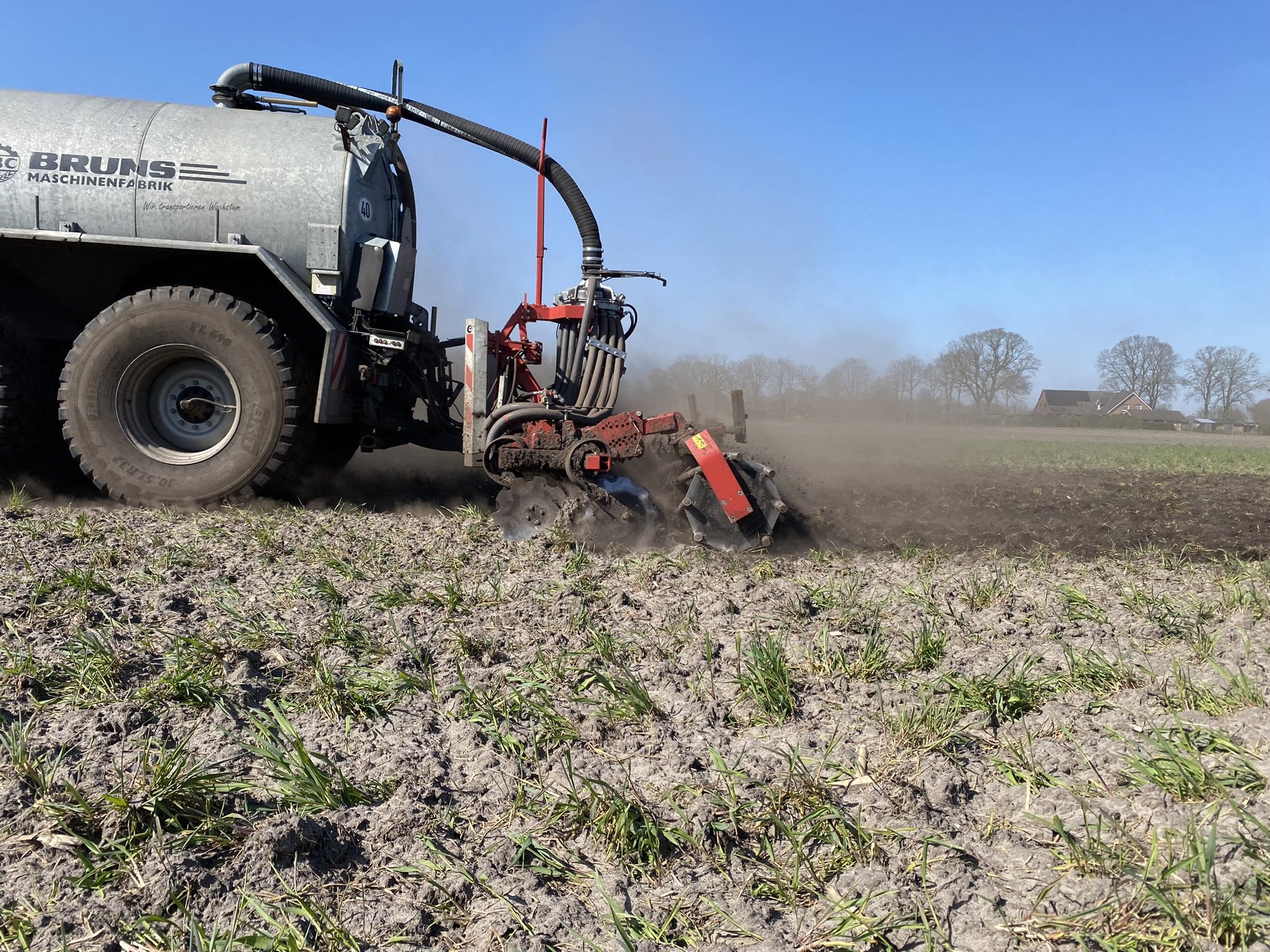

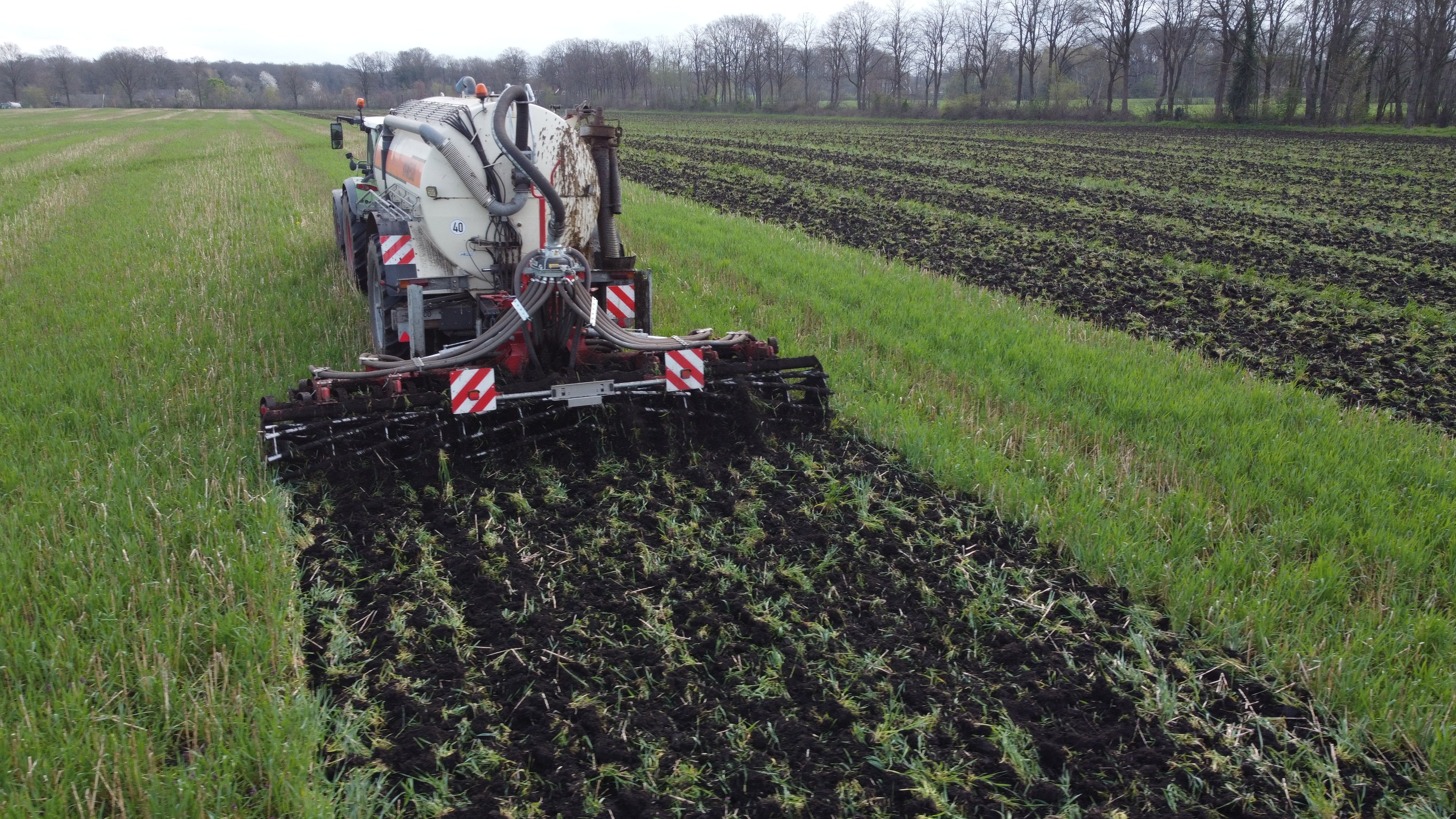

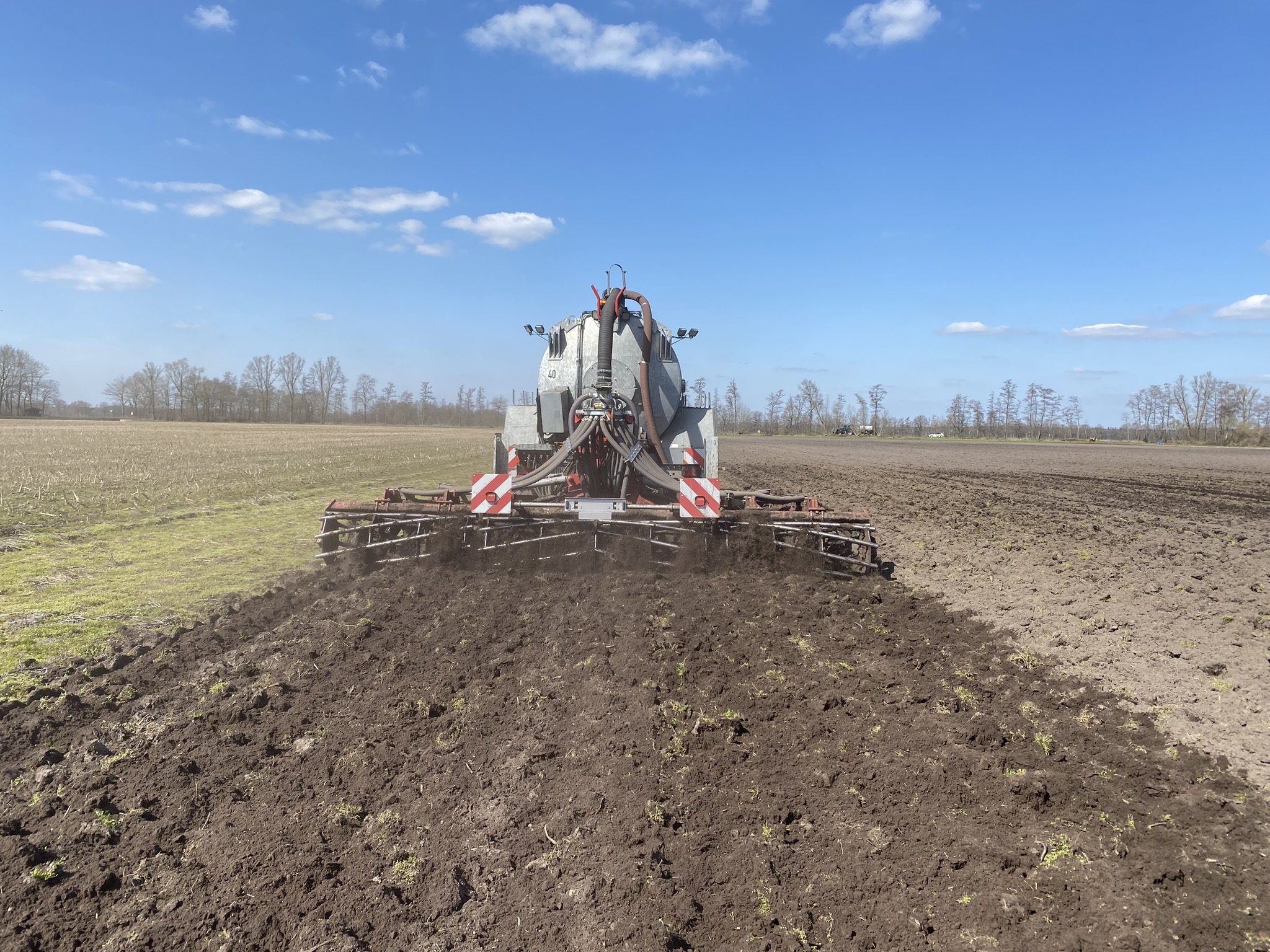

Toric disc cultivator injector with leaf spring elements: compact design

This disc cultivator injector is ideal for fertilising fields with green manure and crop residues. The cutting action of the discs keeps the slurry disc harrow working clog-free. The compact design combined with leaf spring elements ensures a low weight and the centre of gravity is close behind the tank. This results in a positive axle load and drawbar pressure. With the Toric Compact, Evers offers a perfect disc cultivator injector for trailed slurry tanks. Read the Press release.

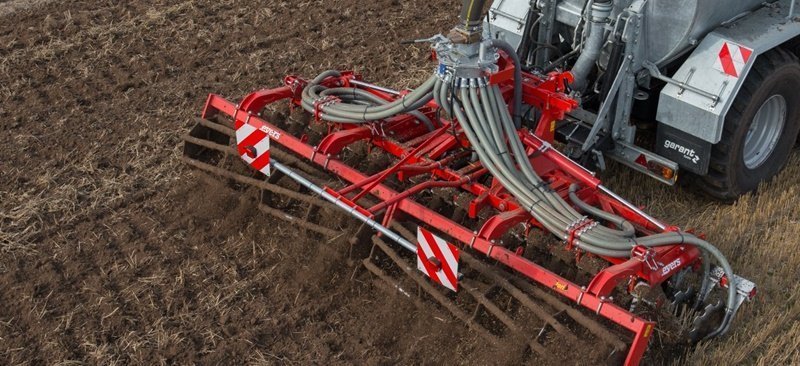

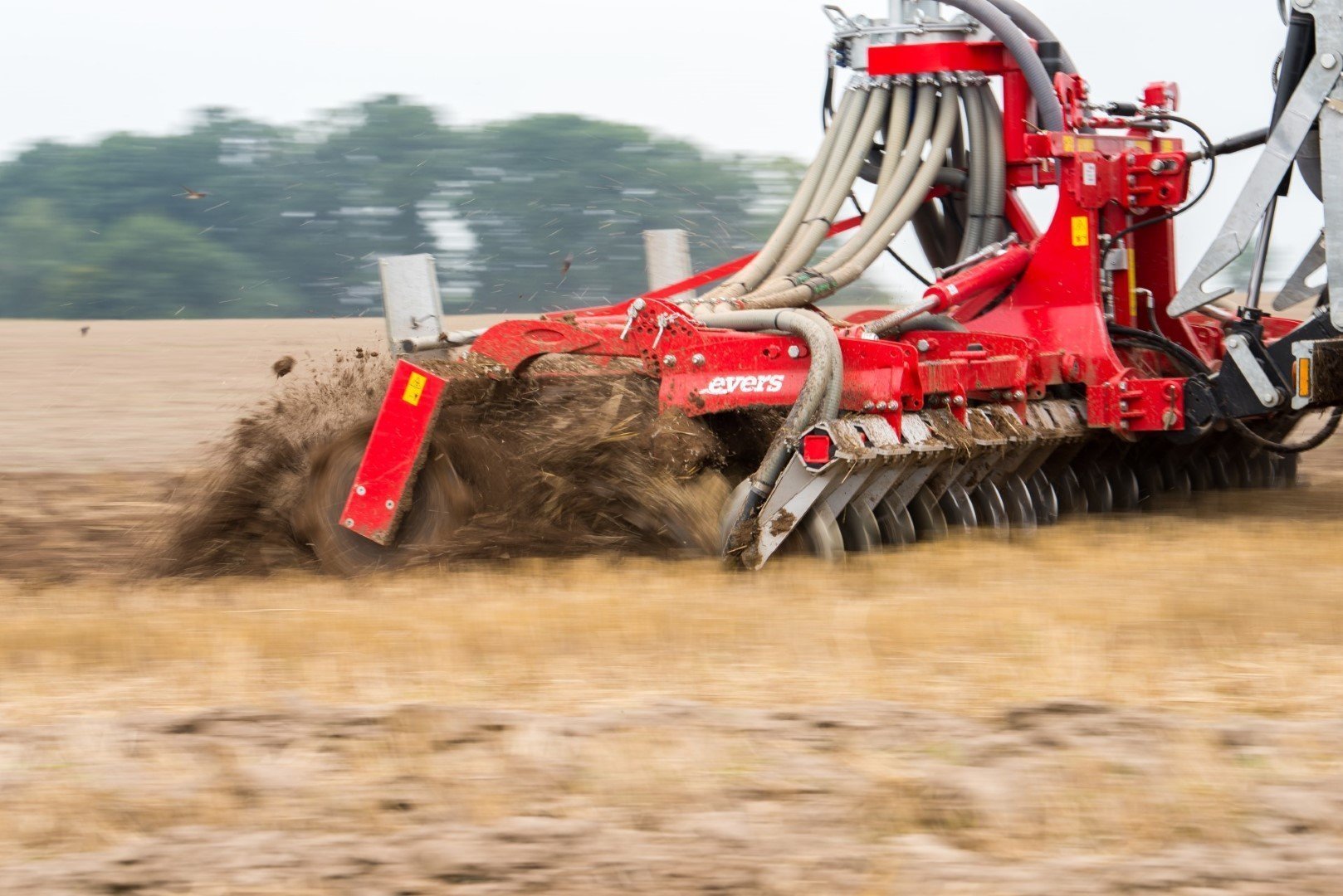

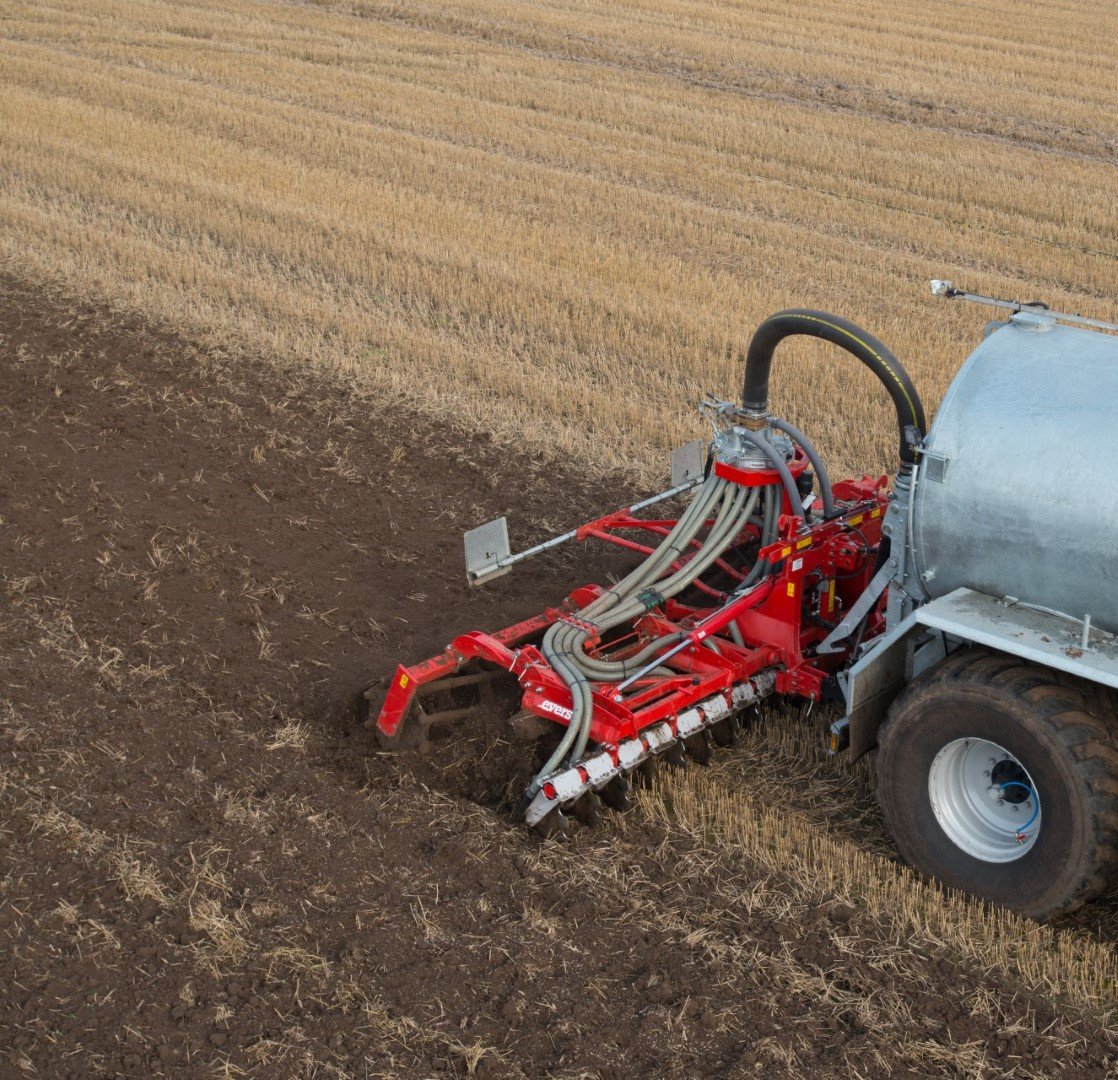

The robust allrounder: Disc cultivator injector with rubber suspension

In combination with the injection unit, the following fertilisation technique is used: the discs work the soil surface with sward, stubble or crop residues.

The manure is then injected 5 to 10 cm deep into the slots. The individual rubber suspended discs ensure that the slurry disc harrow optimally follows the ground contours. The optional rear roller levels the ground, closes it and thus guarantees optimum consolidation.

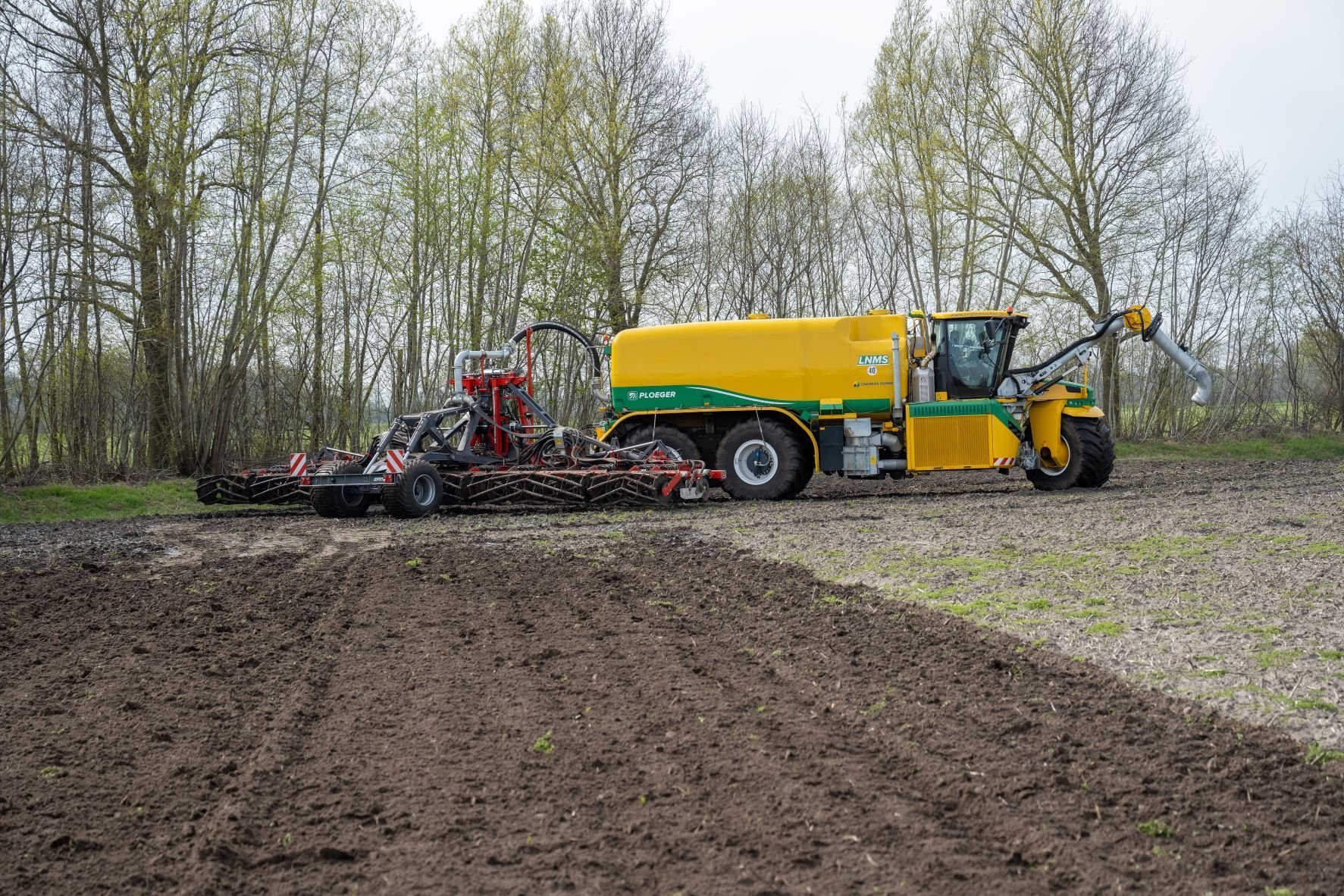

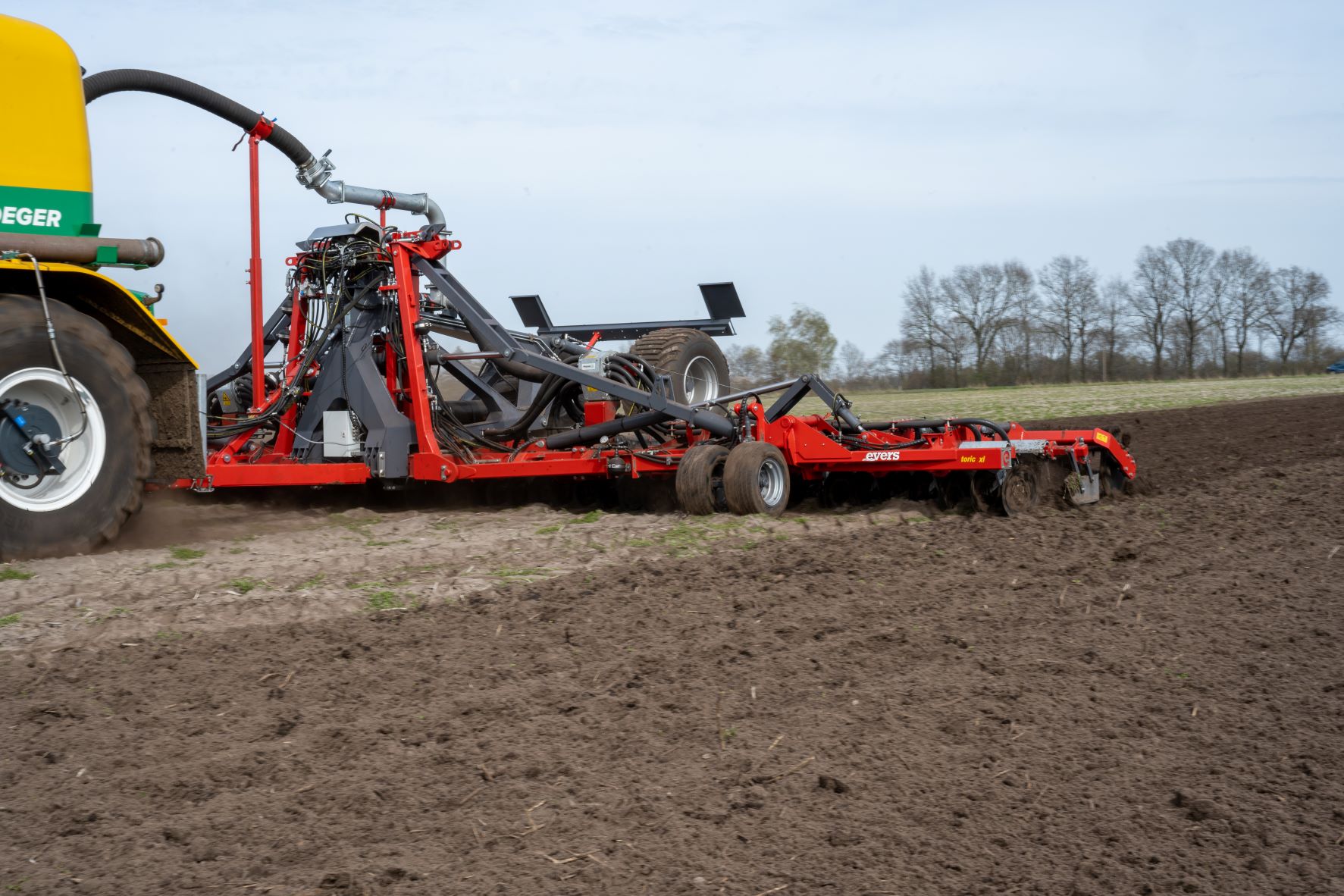

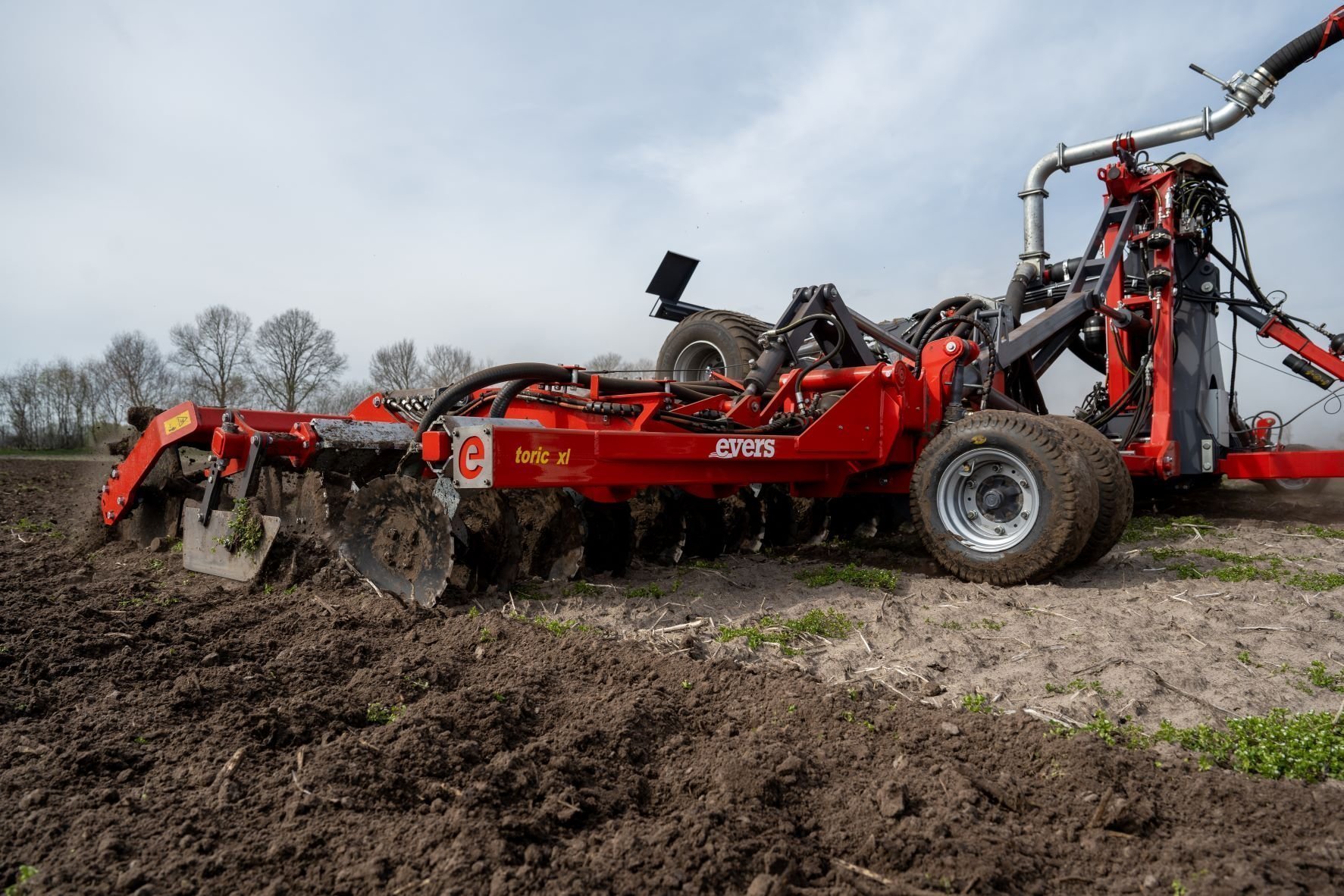

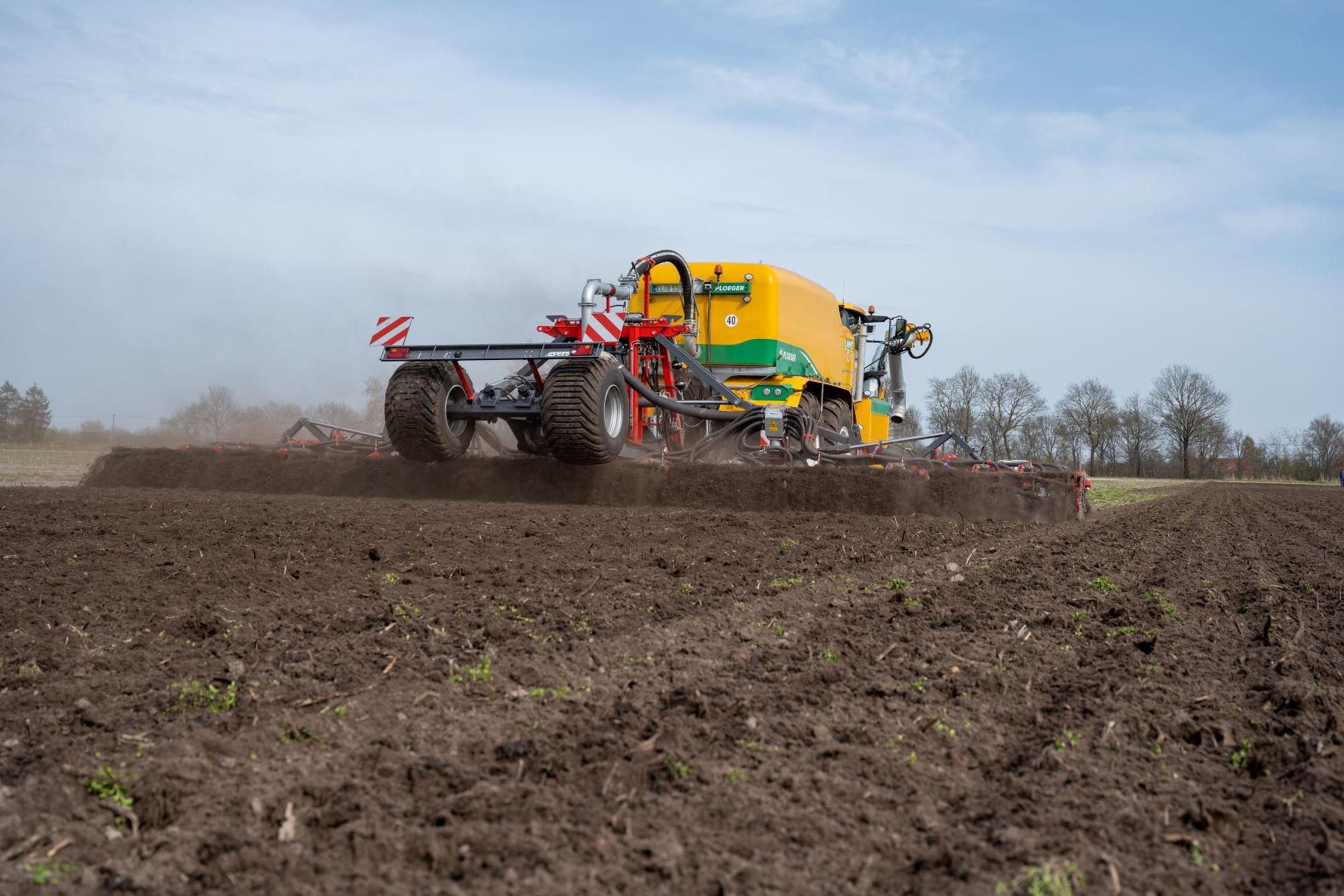

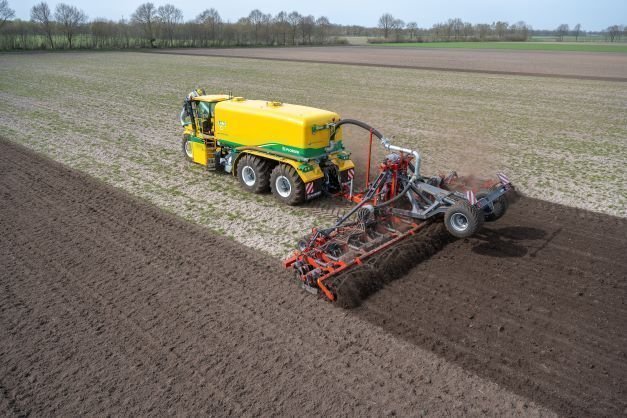

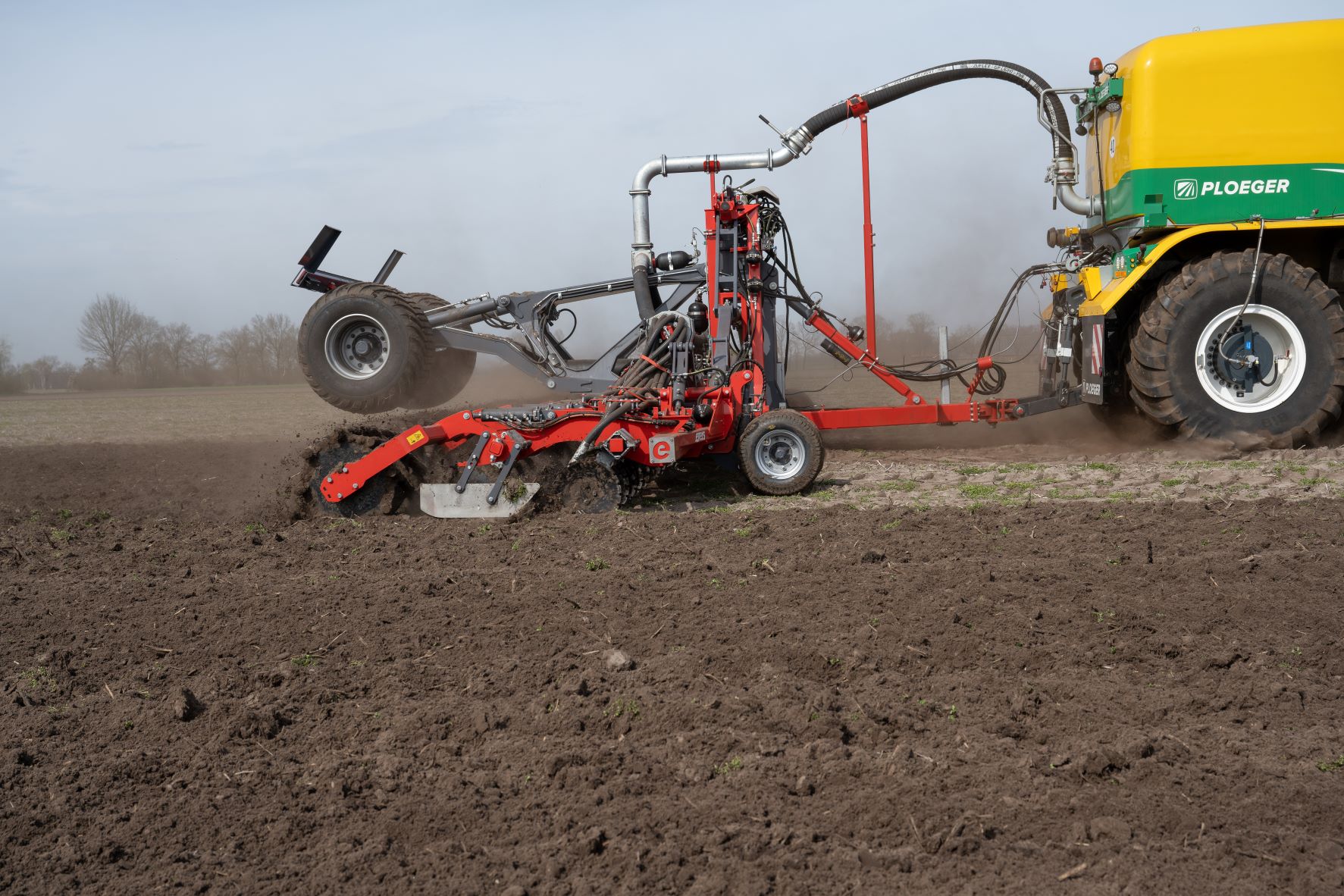

Toric XL: guarantees high capacity

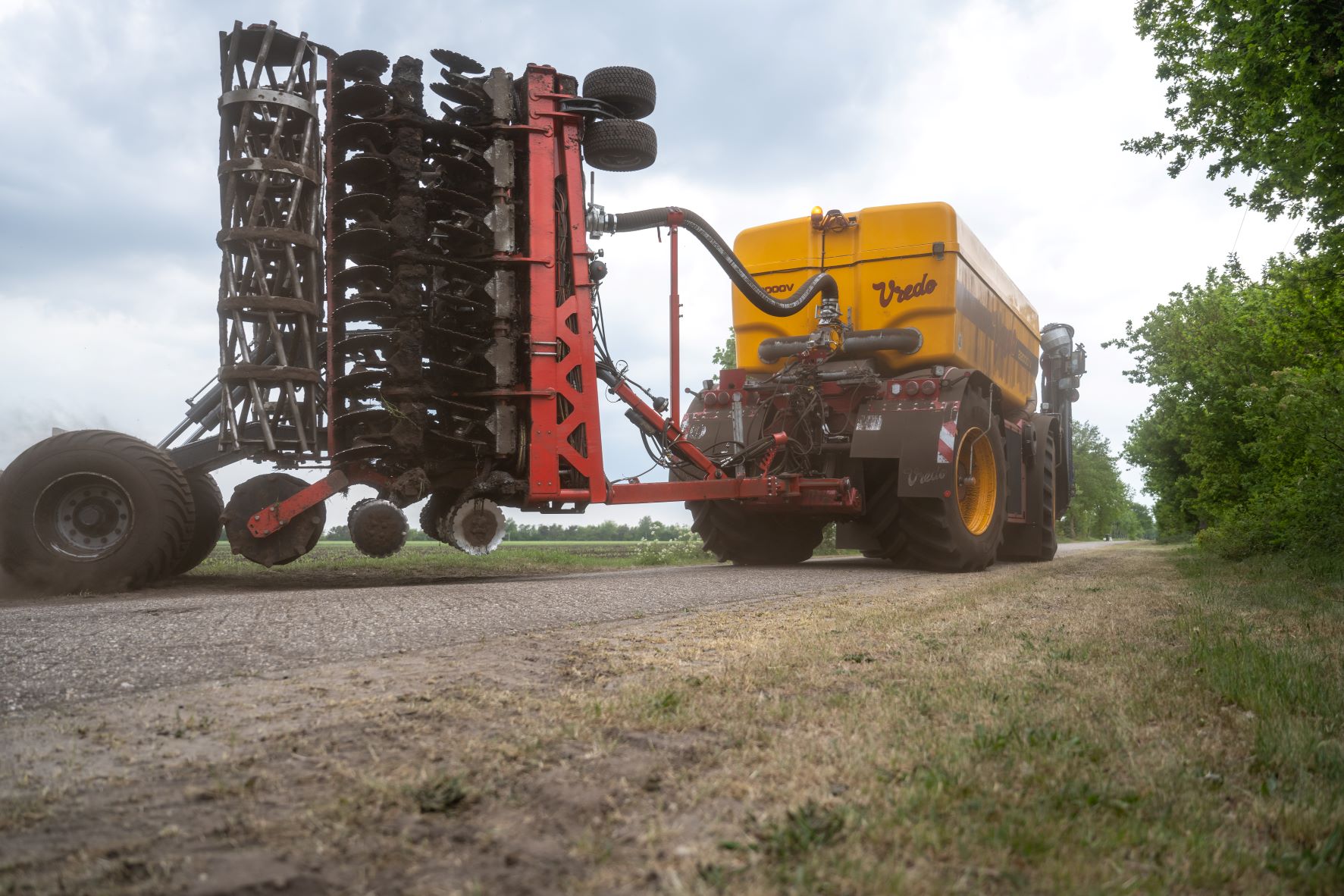

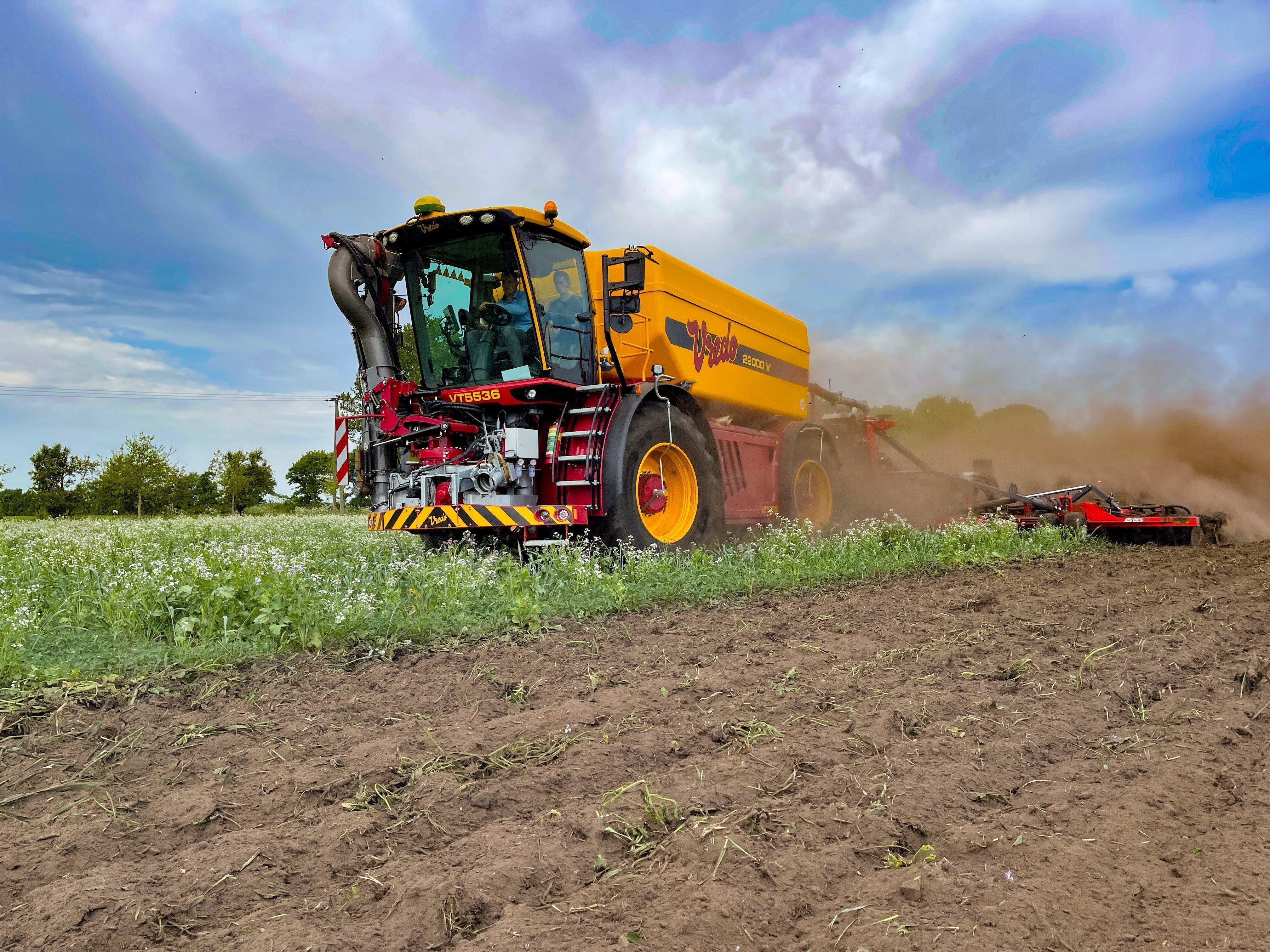

The Toric XL is a robust injector that is perfectly suited for use with self-propelled machines. With a working width of up to 9 metres, the Toric XL guarantees high capacity. The injector is 3-part folding, has a working width of up to 9 metres and a transport width of 3 metres. For working at these wide working widths, the Toric XL is equipped with an active hydraulic ground adaptation. This makes the pressure of the side fields adjustable, ensuring excellent contour following.

The Toric XL is characterised by its compact construction without electronic controls. The pivot points of its side fields are cleverly positioned in the robust frame. As a result, the Toric XL, has a transport width of 300 cm and a machine height of 385 cm. In addition, the disc suspension ensures that the Toric XL is a relatively light disc injector and keeps the power requirement down. Read the press release.

Slurry injection

By injecting slurry directly into the soil nitrogen losses are reduced and nutrient efficiency is increased. The ammonia losses are significantly lower compared to other methods. Another positive aspect is the efficient use of nutrients, because the slurry is injected close to the roots of the plant.

Features of the disc cultivator injector

• Solid construction, narrow transport width
• Working widths: 3 to 12 metres.
• Sturdy frame with good frame height -> guarantees good passage
• The position and the shape of the discs guarantee optimum penetration
• Comes with spreader as standard -> for an even slurry distribution along the full width of the machine
• This disc cultivator injector can also be used as a disc harrow directly behind the tractor. In this way, it can be used as a stubble cultivation machine

Available in various standard versions:

Disc cultivator injector with leaf spring elements

Size in cm

Disc cultivator injector with rubber suspension

Size in cm

Disc cultivator injector with rubber suspension - XL version

Size in cm

* incl. wheelset

Options:

• side discs
• equipped with tube roller and/or support wheels for the correct depth adjustment
• with pneumatic seed drill
• with air separator and sectional shut-off
• various coupling options
