Evers Agro

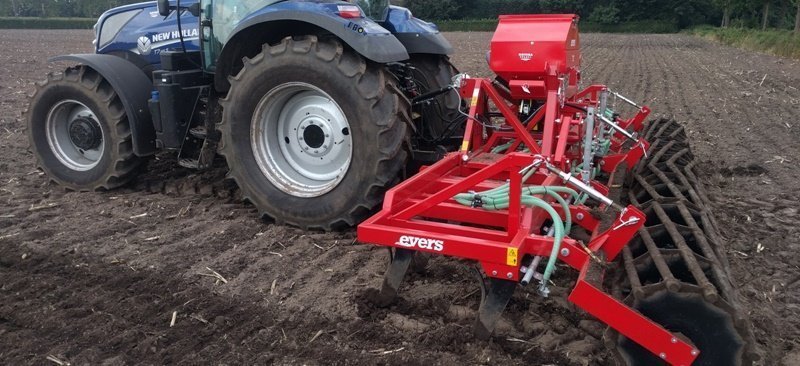

Fixed tine cultivator

The versatile fixed-tine cultivator is suitable for tillage to depths of 10 to 60 cm. The cultivator loosens the soil thoroughly so that it can accommodate roots well and the soil becomes water-permeable.

Evers is the pioneer in the area of fixed-tine cultivators. The extensive range always offers a suitable solution for the (main) soil cultivation of different soil types.

Fixed tine cultivator: versatile, sturdy and reliable

The fixed-tine cultivators are versatile and can be used for tillage to depths of 10 to 60 cm. They have a particularly robust frame. The tines are equipped with shear bolt protection and both the fastening plates and the tines have steel bushes. This guarantees a long service life.

Choose from various options

With the optional hydraulic lifting system it is possible, for instance, to mount your seed drill behind the Evers fixed-tine cultivator to combine passes. It is also possible to fit the fixed-tine cultivator with an extra row of drag tines, a tine harrow or levelling boards. Hydraulic roller adjustment is also available as an option. For stony conditions, a hydraulic obstacle protection is available.

Tines and chisels for any type of soil

Evers offers a suitable tine and chisel, varying from a mixing action to a lifting action only, for every type of soil and all circumstances. With its different types of cultivator tines and chisels, the fixed-tine cultivator is suitable for all soil types:

  • ST tine: suitable for sandy and reclaimed peat soils
  • K tine: suitable for clay and loamy soils, also usable in lighter soils
  • KG tine: suitable for heavy clay soils
  • MT tine: suitable for breaking up compacted layers without mixing the soil

    Improving soil quality

    It is possible to adjust the working depth of the tillage machine very precisely by means of the rear roller. In addition, the rear roller is used to compact, level and crumble the soil. This helps to improve water absorption and the oxygen content of the soil. It also prevents soil erosion and improves soil quality.

    Some of the standard solutions that Evers offers:

    Cultivator - Working depth up to 45 cm

    Size in cm

    TypeNo. of tinesWorking widthTine spacingFrame heightMax. working depth
    HPCat.Hydr. folding frameTransport width (incl. rear roller)Kg (incl. rear roller)
    Shetland 5-150515030482520-452No175300
    Shetland 7-175
    717525482520-502No200320
    Burma 11-2751127525594545-802No300685
    Burma 11-3031130327,5594555-902No325685
    Burma 19-5701957030594595-1503LYes3062070
    Burma 23-69023690305945115-1703LYes3062365

    Cultivator - Working depth up to 60 cm

    Size in cm

    TypeNo. of tinesWorking widthTine spacingFrame heightMax. working depth
    HPCat.Hydr. folding frameTransport width (incl. rear roller)Kg (incl. rear roller)
    Garron 9-281928131,25756080-1203LNo300875
    Garron 9-310931034,40756085-1303LNo3251030
    Garron 9-338933837,50756085-1353LNo3501055
    Garron 11-3031130327,50756085-1353LNo325980
    Garron 17-51017510307560150-2903LYes3061295
    Garron XL 9-281928131,257560120-2003LNo3001155
    Garron XL 11-3031130327,507560125-2353LNo3251280
    Garron XL 17-51017510307560190-3703LNo3102670

    Rigid tine cultivator - Straight tines - Shear bolt protection

    Size in cm

    TypeNo. of tinesWorking widthTine spacingFrame heightHPCat.Hydr. folding frameTransport width (incl. rear roller)Kg (incl. rear roller)
    Garron XL NK9-281928131,2575140-2403LNo3001255
    Garron XL NK11-3031130327,575145-2753LNo3251380
    Garron XL NK17-510175103075210-4103LYes3062670

    Rigid tine cultivator - Straight tines - Hydraulic obstacle protection

    Size in cm

    TypeNo. of tinesWorking widthTine spacingFrame heightHPCat.Hydr. folding frameTransport width (incl. rear roller)Kg (incl. rear roller)
    Garron HS 7-2807280407595-1503No3001880
    Garron HS 9-280928031,257595-1503No2002085
    Garron HS 9-305930534,4075100-1553No3252110

    Cultivator Compact

    Size in cm

    TypeNo. of tinesWorking widthNo. of rowsTine spacingFrame heightMax. working depth
    HPHydr. folding frameTransport width (incl. rear roller)Kg (incl. rear roller)
    Mustang 9-2819281231,25653065-90No325900
    Mustang 11-30311303227,50653065-100No325940
    Mustang 23-690236902306530180-280Yes3002145

    Options:

    • different tine spacing
    • tine harrow
    • levelling tines
    • levelling board
    • hydraulic roller adjustment
    • hydraulic power lift
    • seed drill
    • reflector panels with lighting
    • support wheels and/or various types of rear rollers
