Shallow-cut cultivator

Fully mechanical solution for crop termination

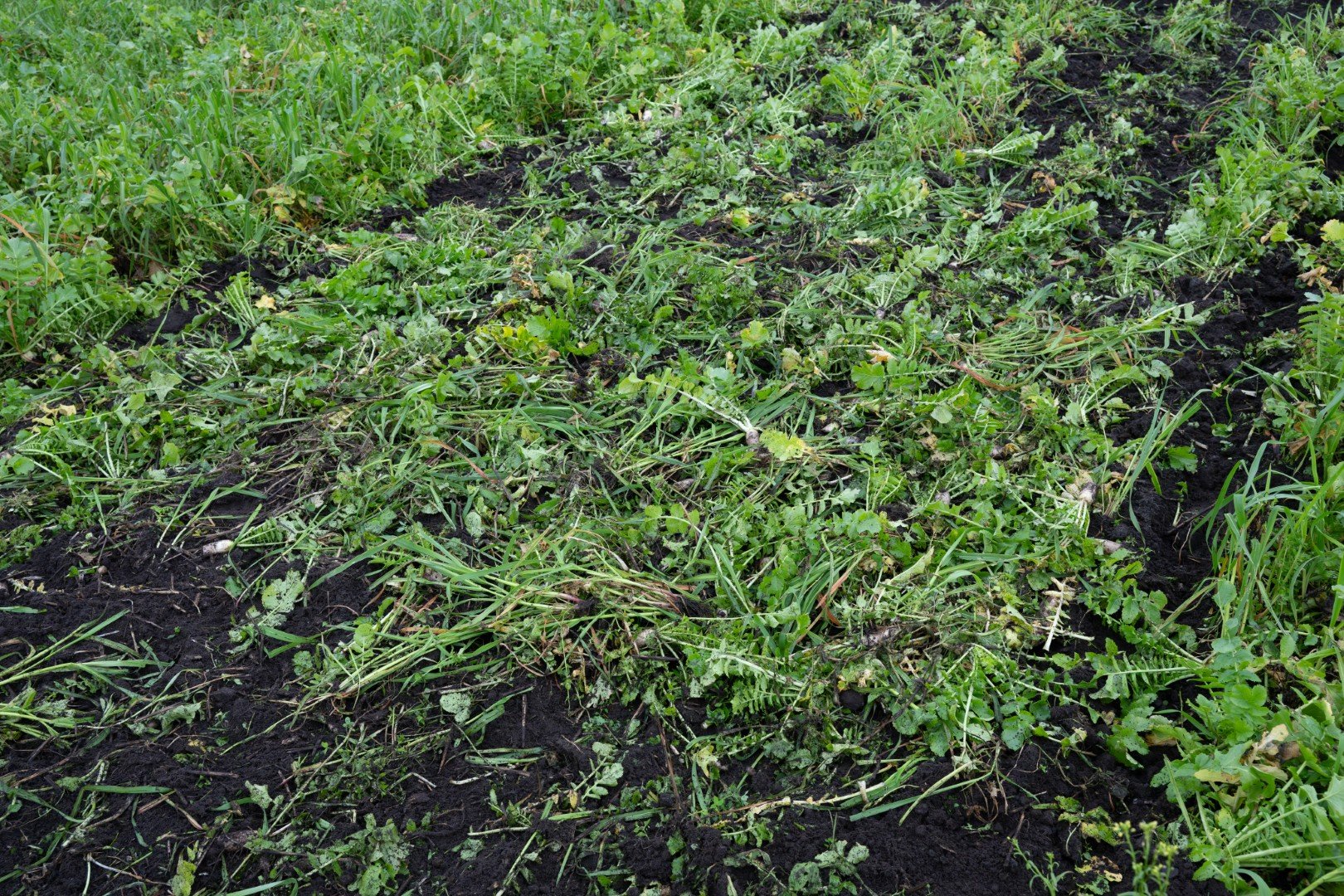

In crop rotation systems, efficient and precise work is essential for a good start of the next crop. This is exactly where the Lundy makes the difference, as the crop is cut just below the soil surface, causing the root to lose its connection with the above-ground plant. As a result, the crop dies off completely and mineralization begins. The cut crop remains airy on the soil surface, forming a mulch layer. This mulch layer provides natural protection, helps retain soil moisture, suppresses weeds, and limits the risk of drought stress in the following crop

Versatile machine with multiple applications

The Lundy Shallow-cut cultivator is suitable for conventional and organic farming.

Applications:

• Temporary or permanent grassland
• Green manures
• Cover crops
• Cereal stubble
• Weeds (e.g., blackgrass)

A unique patented system

The Evers Lundy stands for strength, reliability, and flexibility—exactly what is needed for precision work under varying conditions. The Lundy features a unique patented system:

• Each tine operates independently. The cultivation depth remains constant, supported by the individual parallelogram suspension per tine

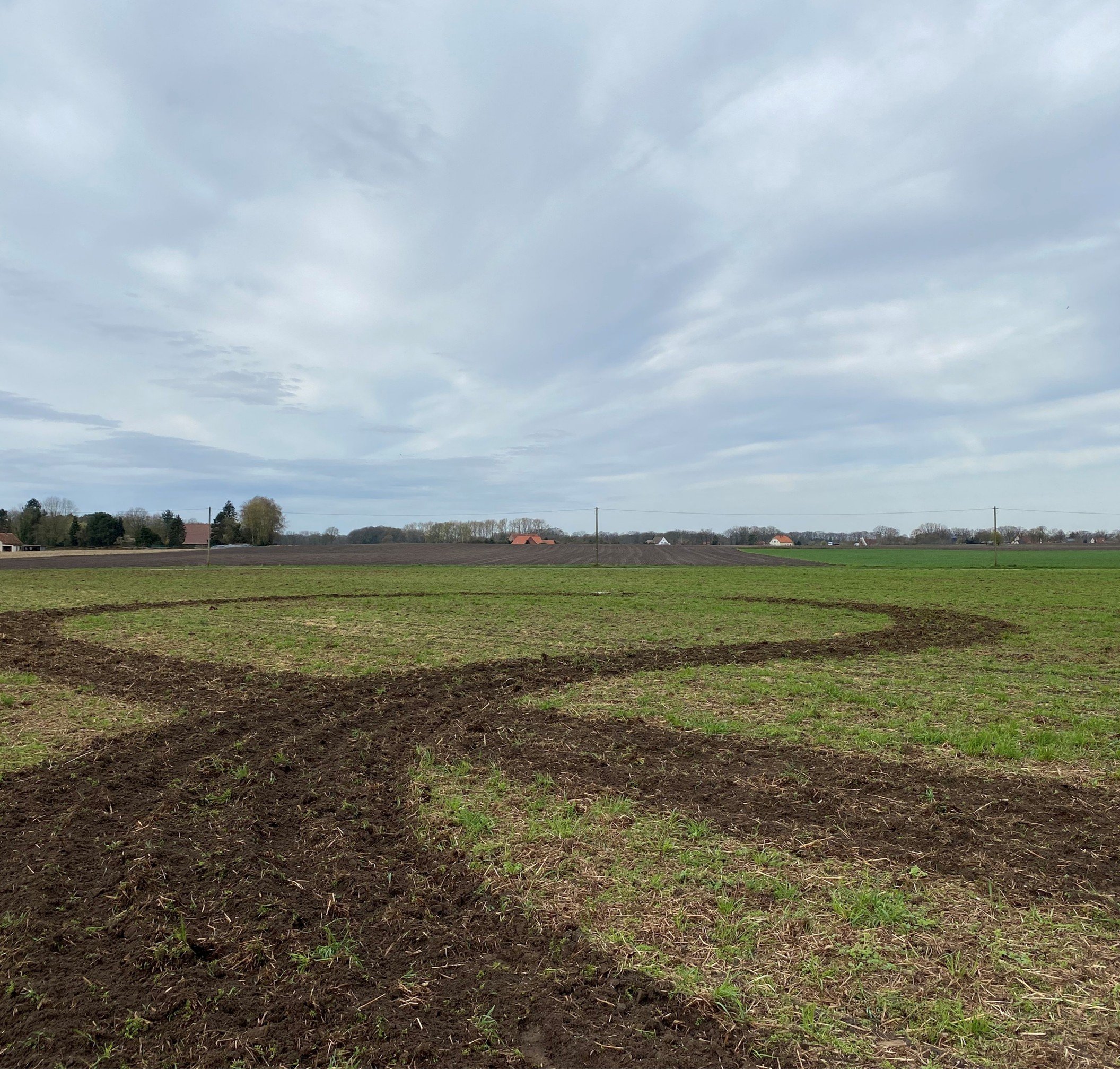

• Contour-following cutting disc with 8 degrees of lateral movement to both sides, allowing the disc to follow curves.

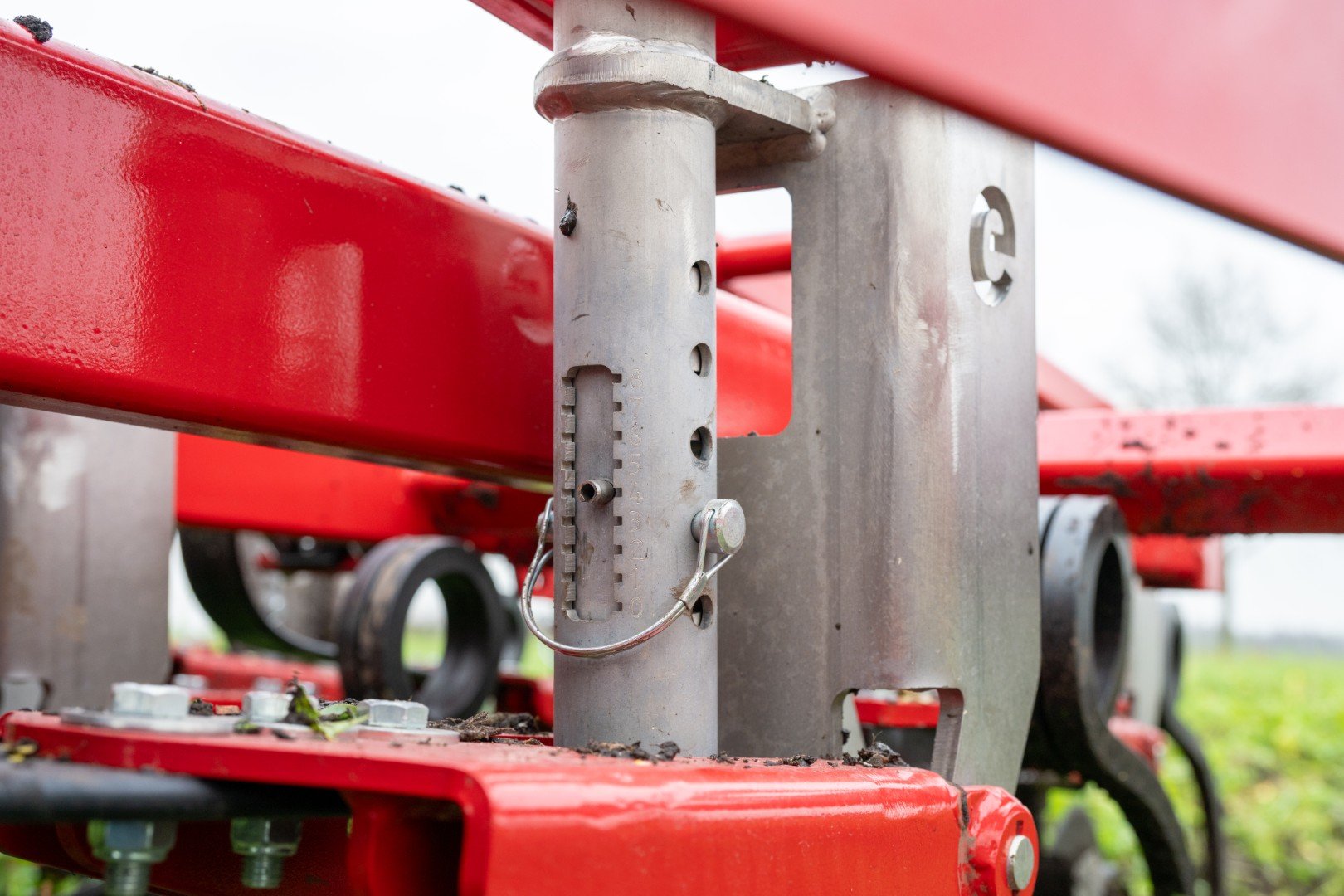

• Working depth adjustable from 1 to 8 cm, in 5 mm increments.

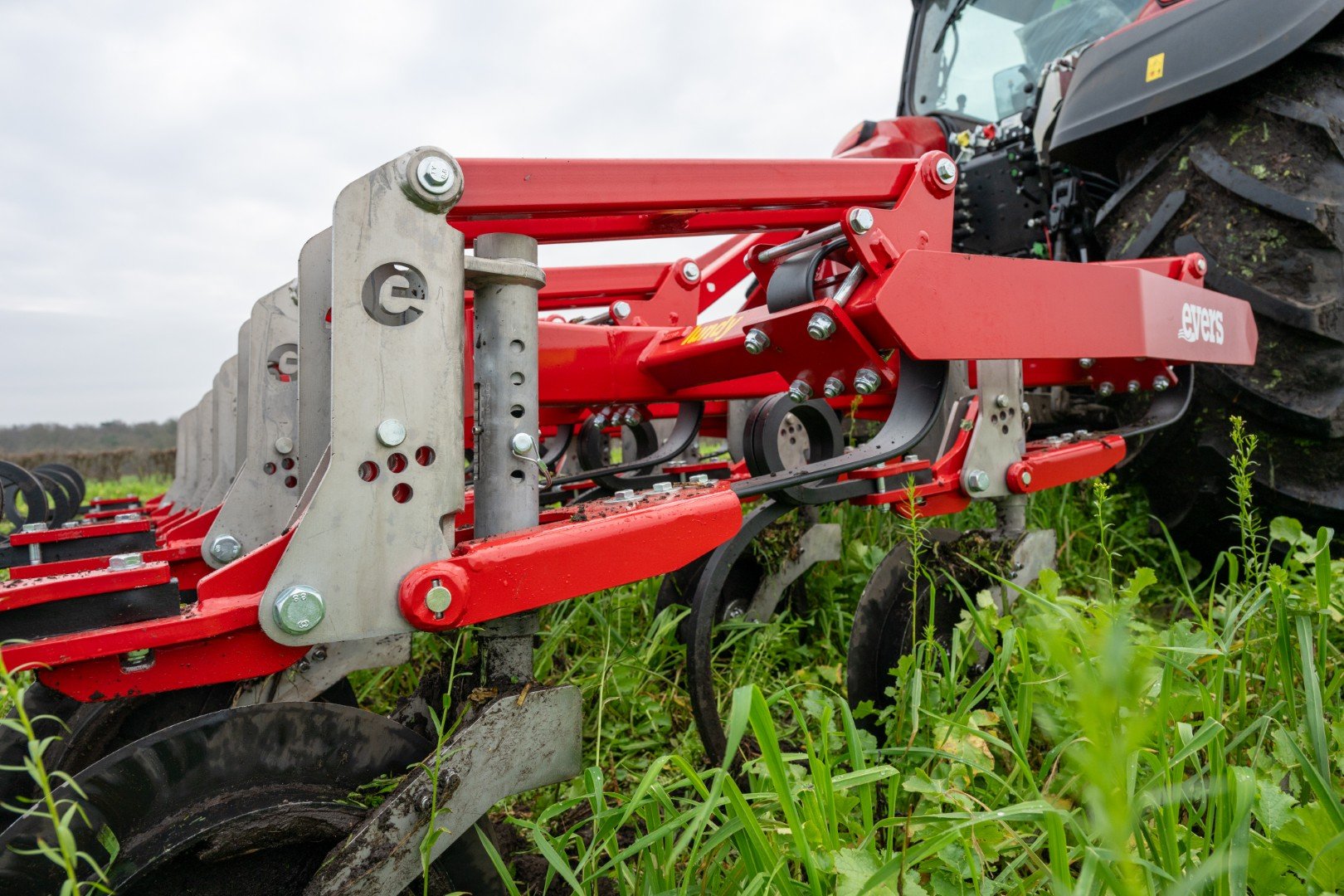

• Each chisel precisely follows the contours of the soil, unaffected by movements in the frame or adjacent tines, thanks to the cutting disc with depth-control ring.

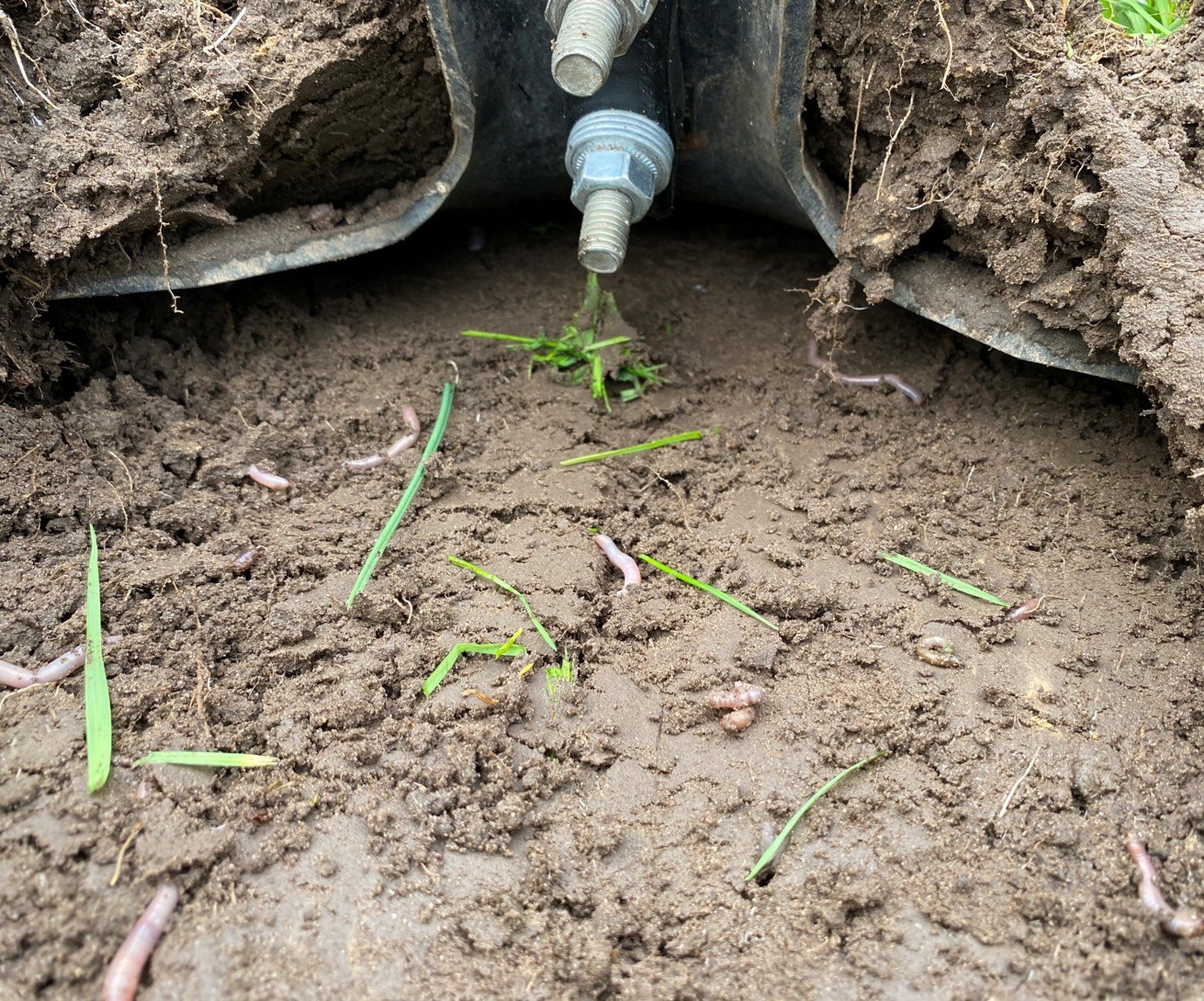

• The cutting disc pre-cuts the soil and any crop residues, while the depth-control ring determines the exact working depth.
• The Lundy keeps the working depth stable, even when the field contains light tracks or irregularities. This ensures a consistently clean cutting pattern with minimal soil disturbance.
• Maintenance-free components make the machine low-maintenance.
• The chisel can be adjusted in 5 different positions: flat, and 1 or 2 degrees forward or backward.
• The smart suspension keeps the chisel positioned flat, producing a uniform and even cutting pattern. The wide wings on the chisels ensure continuous overlap.
• Thanks to the spring suspension, each element has preload and continuous obstacle protection. This ensures constant pressure on the cutting disc and chisel. The machine delivers a clean result under various conditions, with 30 degrees of movement per element.
• The spring action in the hoes also creates vibration, which facilitates cutting and reduces the required power.

Specifications

Dimensions in cm, weights in kg.

Options

• Tine harrow
• Front-mounted version
• Lighting
