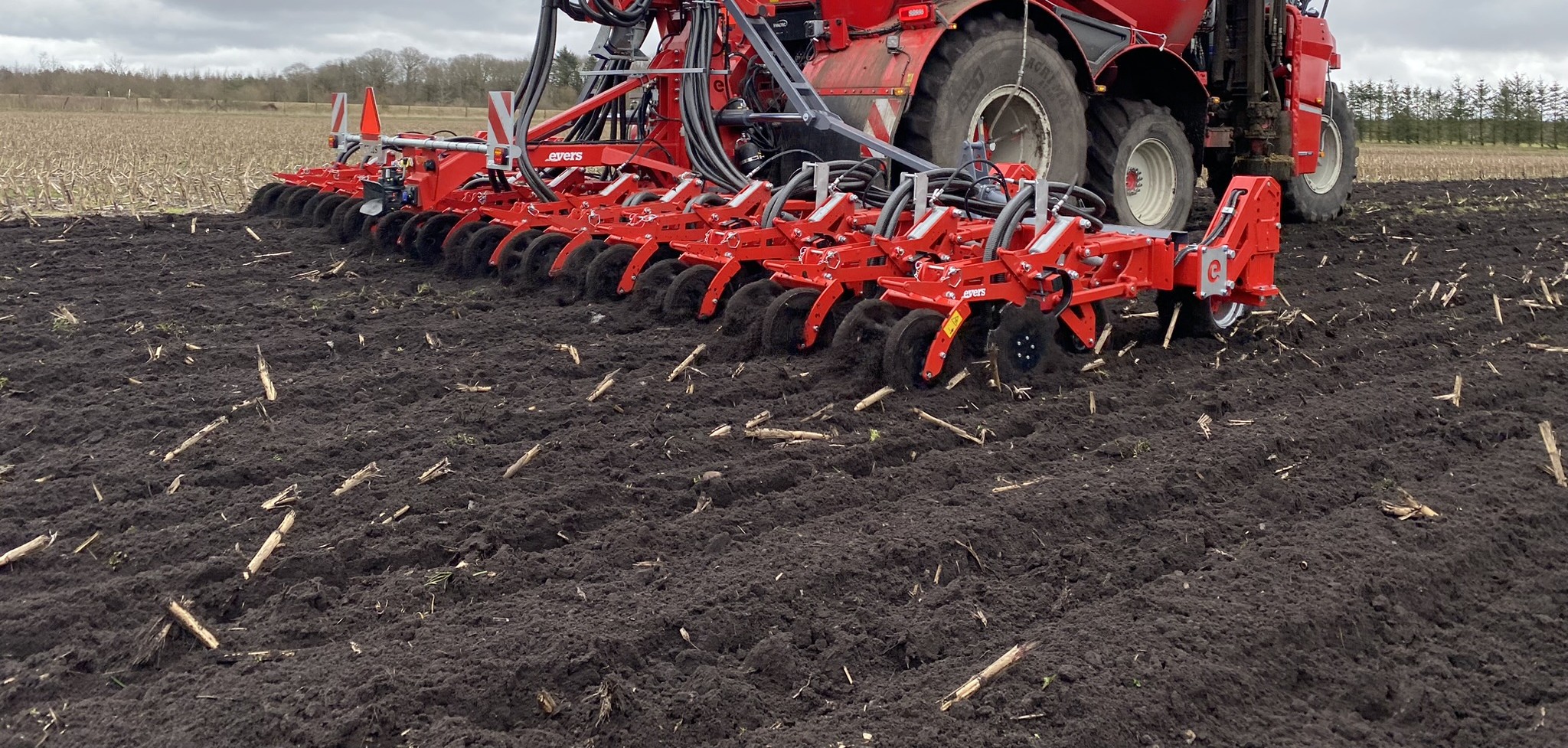

Strip-till injection in pre- and untilled fields

The elements have a parallelogram for an exact slurry application. The structure and bearing capacity of the soil remain intact. Fitted with hydraulic obstacle protection as standard.

The Combi strip-till injector is equipped with a universal mounting plate allowing row spacing of 50 and 75 cm. Effective slurry incorporation for efficient use of nutrients!

Available in various versions:

Size in cm

• Max. working depth 30 cm
• Linkage at your choice
• Individual hydraulic suspended elements for optimal ground following
• Double slurry outlets. Second height-adjustable slurry outlet
• Rigid tines with 19 cm wing points
• Hydraulic obstacle protection
• Smooth cutting disc
• 3-part hydraulic folding frame
• Standard with V-positioning
• Standard with Vogelsang DosiMat slurry distributor
• Optimal hose routing
• Standard with reflection boards with LED lighting (rear)
• Machine height 360 cm (for models with 9 m working width)
• Slurry hoses 50 mm
• Standard rear roller: Tube roller 36 cm with U-profile rings
• Support Wheels 23 x 10.5-12 fitted as standard
